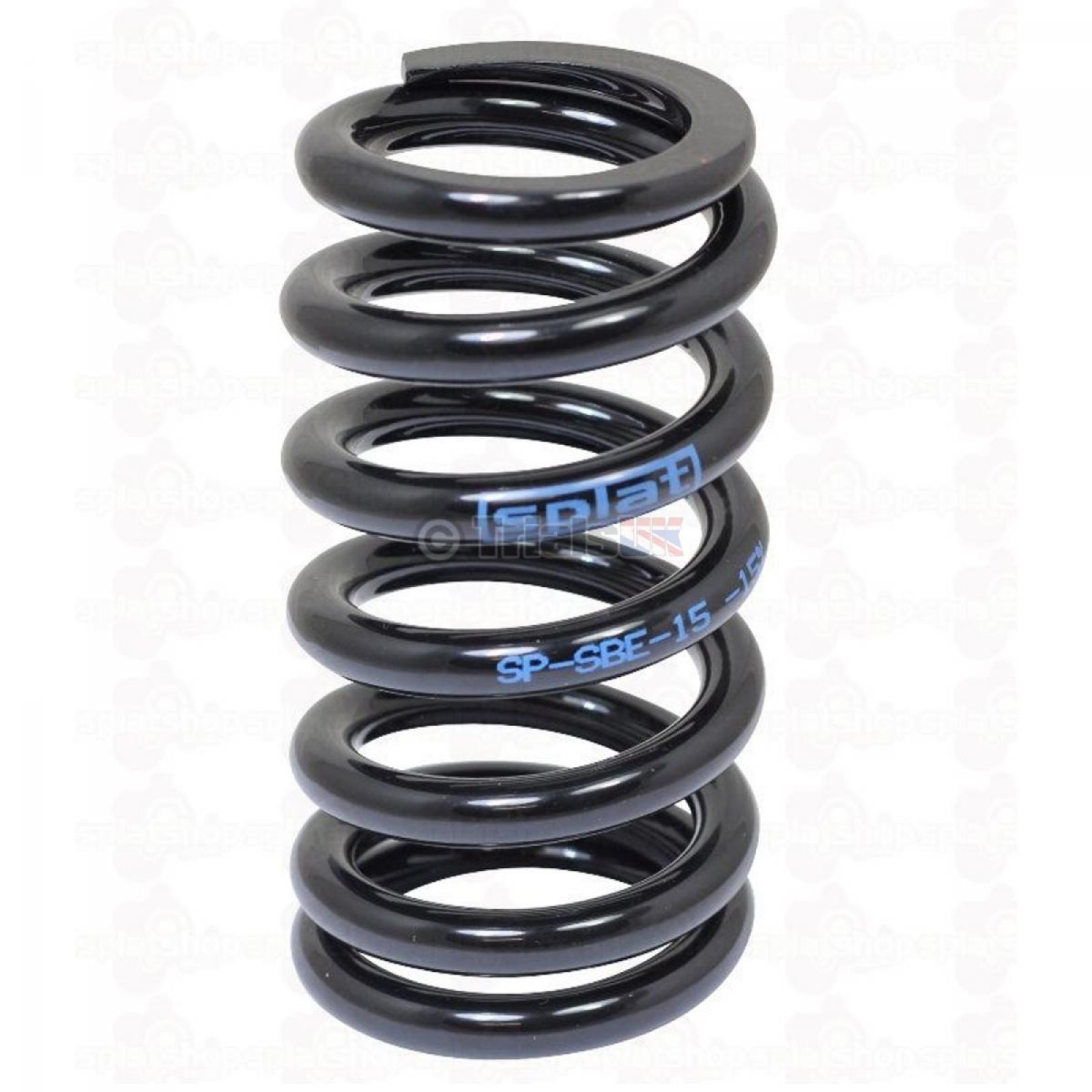

Splats Stronger Shock Spring for the newer Sachs rear shock on the Beta Evo trials models from 2015 onwards, will also fit older Sachs rear shocks, please see description below for limitations.
15% stronger all the way, this is a bit stiffer than standard and is suitable for riders over 13 stone (80kg+) or riders who prefer a slightly stiffer rear suspension. This is a progressive spring with a spring rate of 75 - 85N/mm
- The spring is 130mm long.
- 68.5mm outer diameter.
- 42.6mm inner diameter top.
- 47.7mm inner diameter bottom.
Older Sachs Shocks Limatations:
- Sachs shock on the pre 2015 Beta Evo's, this spring is shorter than the original spring but can still be used.
- Olle and Sachs shocks found on the 2002 to 2005 Sherco trials bikes.
- Sachs shocks fitted to GasGas Pros, this spring is slightly too short and will only allow a few mm of preload, a pre load spacer is required to add more.
